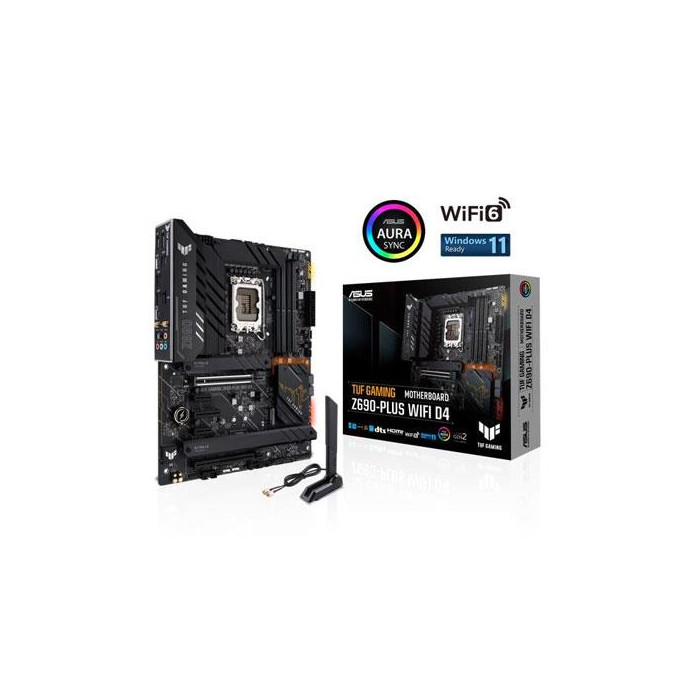

Scheda Madre ASUS TUF GAMING Z690-PLUS WIFI D4

Scheda tecnica

Processore

Socket: LGA1700 - CPU Supportate: Intel Socket 1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors -

Chipset

Intel

Slot Memoria

4DDR4 (Dual channel) - Massima supportata: 128GB - Frequenza: 5333(OC), 5133(OC), 5000(OC), 4800(OC), 4600(OC), 4400(OC), 4266(OC), 4133(OC), 4000(OC), 3866(OC), 3733(OC), 3600(OC), 3466(OC), 3400(OC), 3333(OC), 3200, 3000, 2933, 2800, 2666, 2400, 2133 -

Connettività

LAN: 1 x Intel I225-V 2.5G Ethernet - WLan: Intel Wi-Fi 6

Audio

7.1 Channel(HD) - Codec: ALC887/897 -

Porte e Connessioni

USB 3.2 Gen 2x2: 1 (1@back, 1 x Type-C) - USB 3.2 Gen 2: 3 (2@back, 2 x Type-A - 1@front, 1 x Type-C) - USB 3.2 Gen 1: 7 (5@back, 4 x Type-A + 1 x Type-C - 2@front) - USB 2.0: 4 (4@front) - Thunderbolt: 1 x Thunderbolt 4 header

Altri Dettagli

100% Japan-made Solid Capacitors -AI Charger -ASUS CrashFree BIOS 3 -AURA -AURA Sync -Armoury Crate -Stylish Heat-sink -TurboV EVO -DIGI+ VRM -AI Suite3 -UEFI BIOS -EZ Flash 3 -Fan Xpert 4 -ASUS SafeSlot -DTS Audio Processing -OPTIMEM II -MyAsus

Formato

ATX

Slot VGA

1 x PCIe 5.0/4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4) -

Supporto HDD

4 x SATA 6Gb/s (RAID0,1,5,10)
