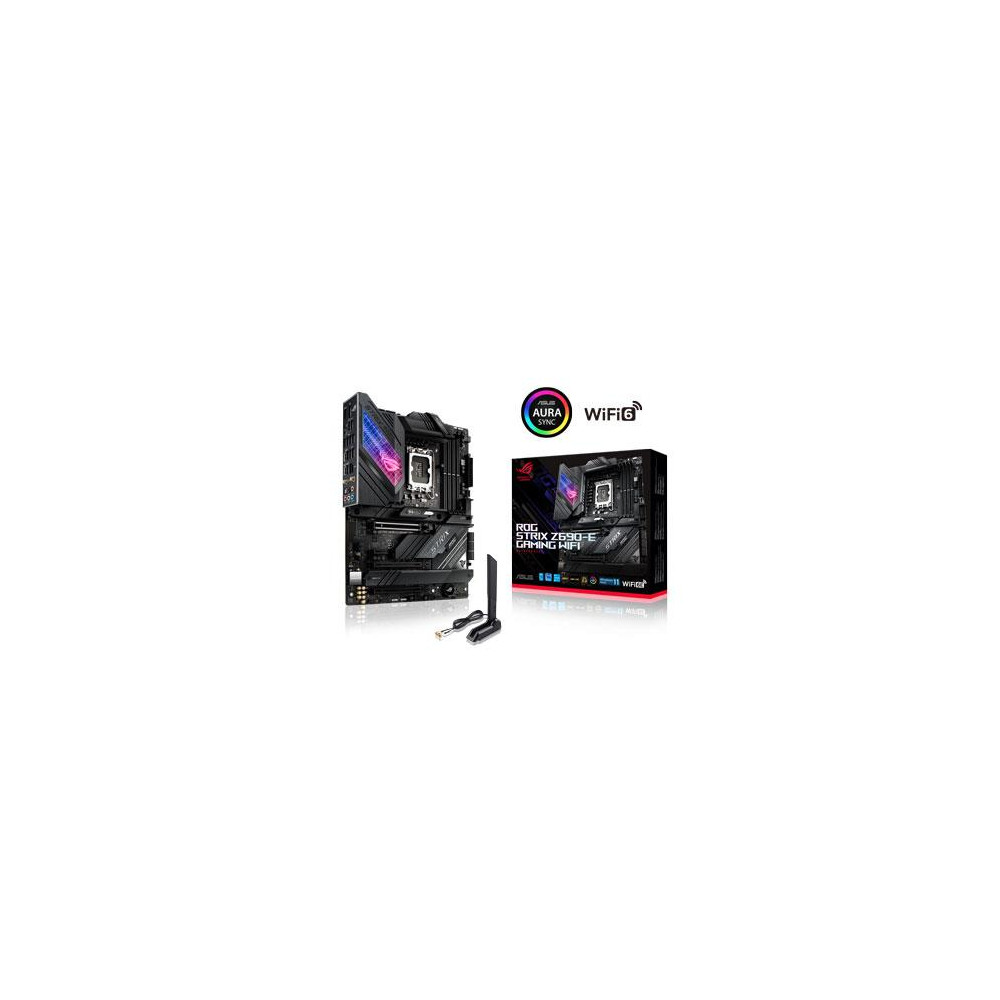

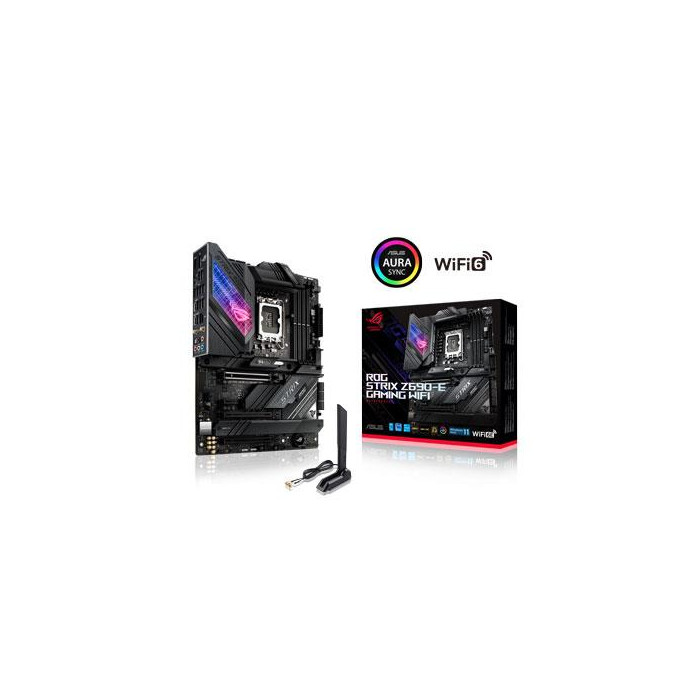

Scheda Madre ASUS ROG STRIX Z690-E GAMING WIFI

Scheda tecnica

Processore

Socket: LGA1700 - CPU Supportate: Intel Socket 1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors -

Chipset

Intel

Slot Memoria

4DDR5 (Dual Channel) - Massima supportata: 128GB - Frequenza: 6400(OC), 6200(OC), 6000(OC), 5800(OC), 5600(OC), 5400(OC), 5200(OC), 5000(OC), 4800 -

Connettività

LAN: 1 x Intel I225-LM 2.5Gb Ethernet - WLan: 2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2

Audio

SupremeFX - Codec: ALC4080 -

Porte e Connessioni

USB 3.2 Gen 2x2: 2 (1@back, 1 x Type-C - 1@front, 1 x Type-C) - USB 3.2 Gen 2: 3 (3@back, 2 x Type-A + 1 x Type-C) - USB 3.2 Gen 1: 6 (4@back, 4 x Type-A - 2@front) - USB 2.0: 8 (4@back, 4 x Type-A - 4@front) - Thunderbolt: 1 x TB Header (for add-on TB ca

Altri Dettagli

AURA -AURA Sync -Armoury Crate -FlexKey -Q-Design -Q-Shield -Dual Intelligent Processors 5 with 5-Way Optimization with AI Overclocking -DIGI+ VRM -TPU -AI Suite3 -UEFI BIOS -USB BIOS Flashback -EZ Flash 3 -Fan Xpert 4 -OPTIMEM II -MyAsus

Formato

ATX

Slot VGA

1 x PCIe 5.0 x16 + 1 x PCIe 4.0 x16 (x4 or x4/x4) + 1 x PCIe 3.0 x16 (max. x4) -

Supporto HDD

6 x SATA 6Gb/s
